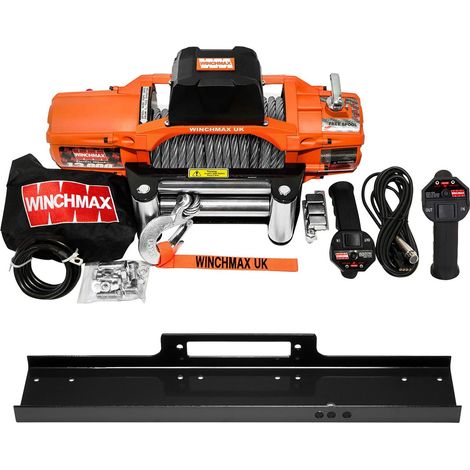

13,500lb (6,123kg) 'SL Series' Original Orange 12v Winch, 24m x 9.5mm Steel Rope, Mounting Plate, Remote Controls.

Name: 13,500lb (6,123kg) 'SL Series' Original Orange 12v Winch, 24m x 9.5mm Steel Rope, Mounting Plate, Remote Controls.
Brand: WINCHMAX
SKU: WMSL1350012V,WMMP2
Price: 439.95 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Winchmax Ltd

Product information

Description

13,500lb (6,123kg) SL Series Original Orange 12V Electric Winch, Steel Rope, Flat Bed Mounting Plate
Twin Wireless Remote Control

Ideal for recovery trucks & trailers up to 3.5T

Features

13,500lb (6,123kg) straight-line pull ‘SL series’ 12V electric winch.
Latest technology long-range combination wireless remote controls, twin handsets.
Super powerful 12V 6.8hp/5.1kw series wound electric motor.
Massive ultra-tough three-stage gearbox with hardened steel gears.
Motor and gearbox casing machined from billet steel for maximum impact protection.
24m x 9.5mm multi-strand steel wire rope.
New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.
Clevis hook with safety catch and hand saver. 3/8 inch G70 grade forged. Zinc plated for corrosion resistance.
Tough four roller fairlead with zinc plated rollers.
Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
Power in/out big grip handheld unit.
Sliding ring gear freewheel clutch.
High tensile fixing bolt kit.
Strong WINCHMAX branded cover to protect from water and road grime.
Heavy-duty & built to last - gross weight 40kg.
CE certified & built to ISO9001 quality management system requirements.

WINCHMAX Mounting Plate

Heavy-duty mounting plate folded, and CNC laser cut from 5mm steel.
Durable powder-coated finish.
Pre-drilled for quick, easy, and professional looking installation of winch and fairlead.
Ideal for flatbed recovery truck and trailer applications.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12V 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5”) Length 224mm (8.82”)
Drum Finish	Black, painted
Cable	24m x 9.5mm (3/8”) diameter steel wire rope
Hook	Clevis hook with safety catch, zinc plated
Fairlead	4-Way roller fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	40kg (88lb)
Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
Mounting Bolt Pattern	10.00” ±0.015” x 4.50” ±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)
Waterproof	IP67 Rating

Layer Rated	Line pull (lbs)	Line Pull (kgs)	Total Rope On Drum (ft/m)
1	13500	6123	20.4/6.22
2	9530	4332	41/12.0
3	7929	3604	71/21.0
4	6770	3077	85/24.0

Line Pull (lbs/kgs)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3000 (1363)	11.48ft (3.5m)	138A
6000 (2727)	8.86ft (2.7m)	218A
9000 (4090)	7.72ft (2.2m)	260A
13500 (6123)	5.58ft (1.7m)	350A
