General description

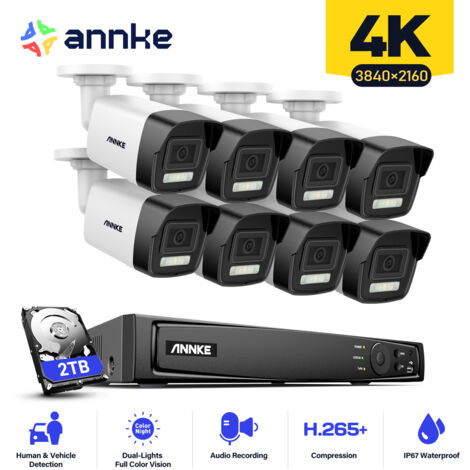

The ANNKE 8CH CCTV Kit includes an NVR and 8 smart dual light cameras, providing comprehensive security solutions for your home or business. With advanced features such as remote monitoring, motion detection, and built-in audio capabilities, this system ensures you stay connected and informed about your property’s safety.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (W x H x D): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (Without Hard Disk): 2.2 lbs (1 kg)
- Camera Image Sensor: 1/2.4" Progressive Scan CMOS
- Camera Max Resolution: 3840 x 2160 (8MP)
- Camera Lens: 4 mm
- Camera Operating Power: DC 12 V ± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Camera Dimensions (L x W x H): 170.8 mm x 66 mm x 69.1 mm (6.7" x 2.6" x 2.7")
- Camera Weight: 0.6 lb (285 g)
Compatibility and accessories
- Supports up to 8 ANNKE IP cameras and other ONVIF cameras
- Compatible with 1MP to 8MP (4K) IP cameras
- Supports on-board storage up to 512 GB (SD card slot)
Installation
- Easy installation with built-in PoE inputs for camera connectivity
- Connects to third-party network cameras
Usage
- Live view, recording, and playback of up to 12 MP resolution
- Receive instant alerts via app pushes and email notifications for motion events
- Customize motion detection areas and privacy masks for enhanced security
