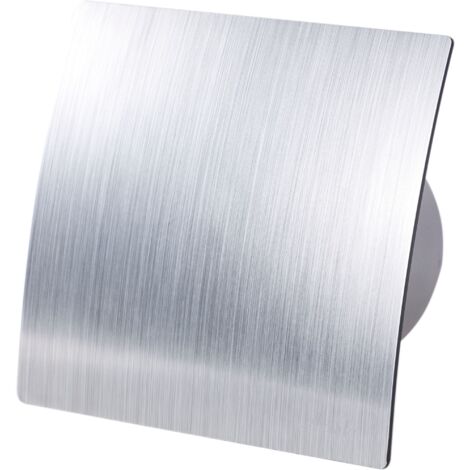

Extractor fan System Silent Escudo Silver 125 H

Product information

Description

General description

The Extractor Fan System Silent Escudo Silver 125 is designed for efficient ventilation in various environments. With its sleek silver front panel made of durable ABS plastic, this fan combines functionality with modern aesthetics.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Nominal size: 125 mm

Speed levels: 1

Wattage: 9 W

Revolutions per minute: 1650

Max. airflow rate: 145 m³/h

Sound pressure level Lp-3m: 32 dB(A)

Total pressure Pmax.: 28 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 125 mm

Front cover dimensions: 208 x 188 x 43 mm

Total depth: 142 mm

Weight: 1 kg

Other information

Adjustable shut-off timer (3-30 min)

Humidity sensor (40-90%): fan turns off after the pre-set time once the humidity level falls below the pre-set value

Mounting options: wall, ceiling

Features

Brand
AWENTA
Height
14.2 cm
Weight
1000 g
Power
9 W
Noise level
32 dB
