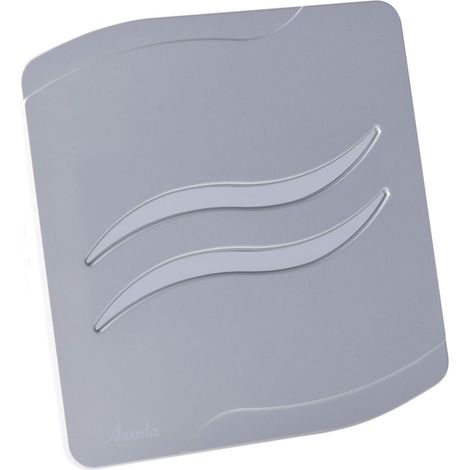

Extractor fan System Silent S Line Silver 100

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Front panel colour: silver
Front panel material: ABS plastic
Nominal size: 100 mm
Speed levels: 1
Wattage: 5 W
Revolutions per minute: 1900
Max. airflow rate: 75 m³/h
Sound pressure level Lp-3m: 26 dB(A)
Total pressure Pmax.: 26 Pa
IP rating: IPX4
Max. ambient temperature: +40°C
Diameter pipe connection: 100 mm
Front cover: 160 x 160 x 26 mm
Total depth: 114 mm
Weight: 0.7 kg
On / off via light switch (to be provided on-site)
Mounting options: wall, ceiling
Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Grey
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
75 m³/h

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
