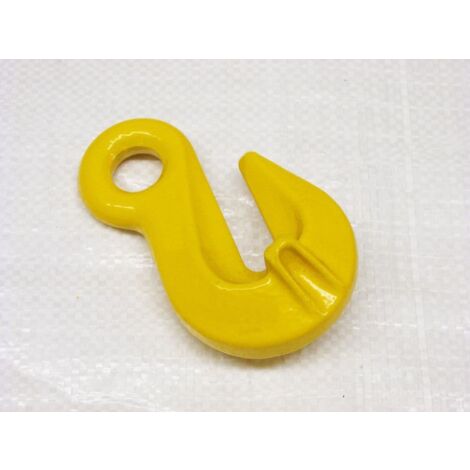

Eye Grab Hook Grade 80 16MM (G80 8 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 80 16MM (G80 8 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFYASEGH16
Price: 25.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Grab Hook Grade 80 is designed for use with 16MM chain sizes, providing a reliable and efficient solution for lifting applications. Made from high-quality Grade 80 material, this hook is engineered to meet the demands of the lifting gear industry, ensuring safety and durability.

Technical specifications

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASEGH07: SWL 2 Tonne, A 17.5 MM, B 60 MM, C 92 MM, D 10 MM, E 11 MM, F 31.5 MM

SFYASEGH10: SWL 3.15 Tonne, A 19.5 MM, B 77 MM, C 120 MM, D 12.5 MM, E 13.5 MM, F 45 MM

SFYASEGH13: SWL 5.3 Tonne, A 25 MM, B 97 MM, C 160 MM, D 15 MM, E 16.5 MM, F 60 MM

SFYASEGH16: SWL 8 Tonne, A 29 MM, B 105 MM, C 165 MM, D 18 MM, E 20 MM, F 70 MM

SFYASEGH20: SWL 12.5 Tonne, A 37.5 MM, B 140 MM, C 215 MM, D 23 MM, E 24 MM, F 80 MM

SFYASEGH22: SWL 15 Tonne, A 42.5 MM, B 160 MM, C 255 MM, D 27 MM, E 27 MM, F 95 MM

SFYASEGH26: SWL 21.2 Tonne, A 44.5 MM, B 180 MM, C 300 MM, D 27.5 MM, E 35 MM, F 100 MM

SFYASEGH32: SWL 31.5 Tonne, A 55 MM, B 227 MM, C 365 MM, D 34 MM, E 43 MM, F 123 MM

Usage

This Eye Grab Hook is primarily used in the lifting gear industry for chain slings. By attaching chain to the grab hook, it allows for the shortening of the chain to suit specific lifting needs.

Other information

*Test Certificate will be supplied via email.*
*Please note we supply a huge variety of lifting gear.*

Features

Brand
SECUREFIX DIRECT
Colour
Yellow
Warranty
1 year(s)
Pcs per pack
1
Maximum load
8000 kg
Material
Two-material
Weight
100 g
ManoMano Reference
ME27136793
MMID
501650251302
Product code
SFYASEGH16
EAN
0600988486027
