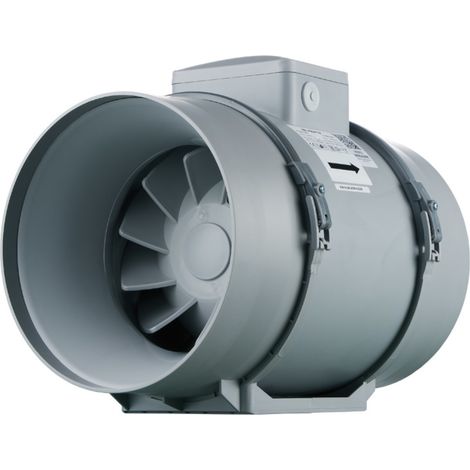

Inline fan Vents TT Pro 250 U up to 1400 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: grey
• Housing material: robust, flame-retardant polypropylene
• Nominal size: 250 mm
• Wattage min. / max.: 125 / 177 W
• Current consumption min. / max.: 0.54 / 0.79 A
• Revolutions per minute min. / max.: 1955 / 2440
• Airflow rate min. / max.: 1100 / 1400 m³/h
• Sound pressure Lp-3m min. / max.: 44 / 51 dB(A)
• Height: 323 mm
• Width: 287 mm
• Length: 383 mm
• Diameter duct connection : 247 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 7.8 kg
• Integrated speed control (2 speeds / off) with electric thermostat and temperature sensor inside the duct. Temperature-controlled operation. Lead wire with IEC C14 plug.
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
