General description

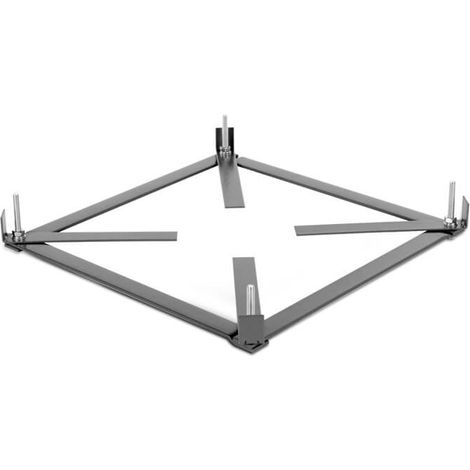

The installation base counter frame is designed for the Vortice Torrette TR and ED roof-mounted fan ranges. It is constructed from galvanized steel sheet with a primed, hammered grey finish and enamelled for durability. The frame is delivered in single parts and requires on-site assembly. It features 4 clips that allow for wall or screw mounting.Technical specifications
- TR-CU 10/15: 357 mm (A) x 401 mm (B)
- TR-CU 20/30/50: 500 mm (A) x 541 mm (B)
- TR-CU 70/100-4P: 750 mm (A) x 791 mm (B)
- TR-CU 100/150/180/210 6-8P: 900 mm (A) x 941 mm (B)
Compatibility and accessories
This frame is compatible with the following Vortice roof-mounted fan ranges:- TRT horizontal and vertical
- TRM horizontal and vertical
Other information
