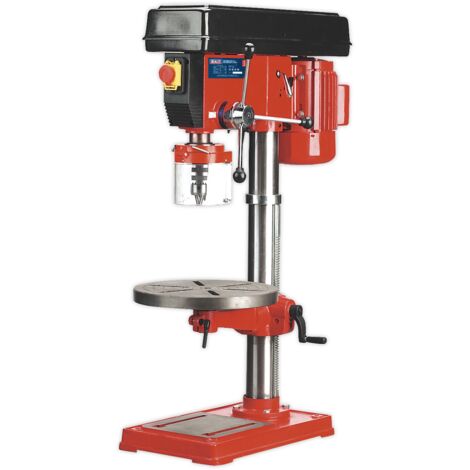

Sealey Bench Mounting Pillar Drill 16-Speed 750W/230V GDM180B

Name: Sealey Bench Mounting Pillar Drill 16-Speed 750W/230V GDM180B
Brand: SEALEY
SKU: gdm180b
Price: 566.1 GBP
Availability: InStock
Rating: 3 (2 reviews)

Sold by GravaHaus and 2 other sellers

Product information

Description

General description

Sealey GDM180B Bench Mounting Pillar Drill is part of a comprehensive range designed for light industrial, agricultural, and woodworking applications. This versatile drill features a robust construction suitable for educational use and is equipped with safety devices to prevent accidental starting.

Technical specifications

Model No.: GDM180B

Motor Power: 550W

Input Power: 750W

Height: 1085mm

Spindle Centre to Column: 216mm

Column Diameter: 80mm

Spindle Travel: 80mm

Chuck Capacity: 20mm (3/4") No. MT3

Maximum Distance Spindle to Base: 685mm

Maximum Distance Spindle to Table: 495mm

Nett Weight: 70kg

Base Size: 520 x 320mm

Compatibility and accessories

Optional Mortise attachment available

Installation

Extra assistance is recommended at the delivery point due to the item's weight

Usage

Suitable for light industrial, agricultural, and woodworking applications

Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work

Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits

Other information

Sealey Pillar Drill Bench 16-Speed 1085mm Height 750W/230V

Features

Brand
SEALEY
Power
750 W
Voltage
230 V
Drill bit/chuck compatibility
Morse taper 2
Spindle travel
80 mm
Length
108.5 cm
Magnetic
Yes
Table material
Aluminum cast
Chuck taper number
MT3
Weight
74 kg
Chuck
Morse taper shank
ManoMano Reference
ME1401107
MMID
779888935251
Product code
gdm180b
EAN
5024209365673
