General description

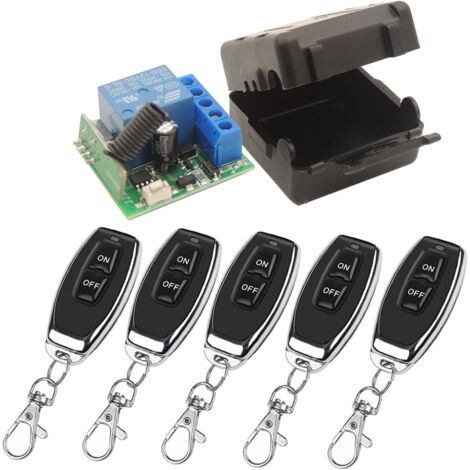

The Universal Wireless Remote Control Switch operates at a frequency of 433 MHz and is designed for DC 12V applications. It features a reliable RF relay receiver module that allows for remote control of connected devices from a distance of up to 50 meters in open areas. The system is equipped with an EV1527 learning code chip, enhancing security by ensuring that only configured transmitters can control the receiver.
Technical specifications
- Operating voltage: DC 12V
- Input voltage/output: 1 ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Support encoding: learning code EV1527
- Sensitivity reception: > 97 dBm
- RF operation mode: ASK superhetodyne wireless reception
- Operating temperature: -30 ~ +80 °C
- Reception range: more than 50 meters in open space
- Standing current: < 5 mA
Installation
To configure the remote control, follow these steps:
- Press the learning button on the receiver once and wait 3 seconds.
- Press a button on the remote control to complete the configuration.
For different modes, the installation process varies:
- Momentary mode: Press and hold the button to turn on; release to turn off.
- Toggle mode: Press the button to turn on; press again to turn off.
- Locked mode: Press the "ON" button to turn on; press the "OFF" button to turn off.
- Delay mode: Press and hold the button to turn on; it will turn off after a set time (5, 10, 15, or 20 seconds).
Usage
This remote control switch is versatile and can be used in various applications, including:
- Electric door locks
- Alarm bells
- Access control systems
- Lighting control
- Ventilation devices
- DIY remote control projects
