General description

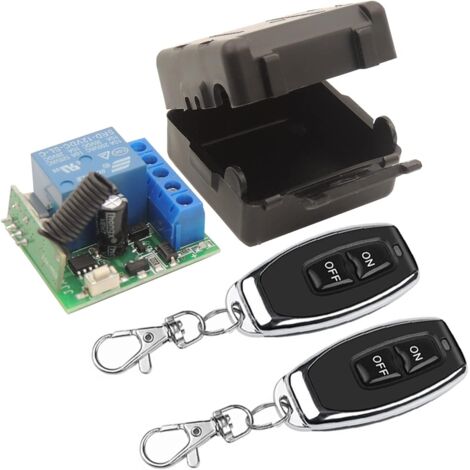

The Universal Wireless Remote Control Switch operates at a frequency of 433 MHz and is designed for DC 12V applications. It includes a 1-channel RF relay receiver module along with 2 transmitters, allowing for versatile remote control of various devices. The system is known for its stable and reliable performance, with a high sensitivity reception level of over 97 dBm. The strong radio frequency signal can penetrate walls, floors, and doors, enabling control from distances of up to 50 meters in open areas.
Technical specifications
- Operating voltage: DC 12V
- Input voltage/output: 1 ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Support encoding: learning code EV1527
- Sensitivity reception: > 97 dBm
- RF operation mode: ASK superhetodyne wireless reception
- Operating temperature: -30 ~ +80 °C
- Reception range: More than 50 meters in open space
- Standing current: < 5 mA
Installation
To install the remote control switch, follow these steps:
- Press the learning button on the receiver once and wait for 3 seconds.
- Press a button on the remote control to complete the configuration.
Usage
The remote control switch features four operating modes:
- Momentary mode: Press and hold the button to turn on the relay; release to turn it off.
- Toggle mode: Press the button to turn on the relay; press again to turn it off.
- Latched mode: Press the "ON" button to turn on the relay; press the "OFF" button to turn it off.
- Delay mode: Press and hold the button to turn on the relay; it will turn off after a set delay (5, 10, 15, or 20 seconds).
