General description

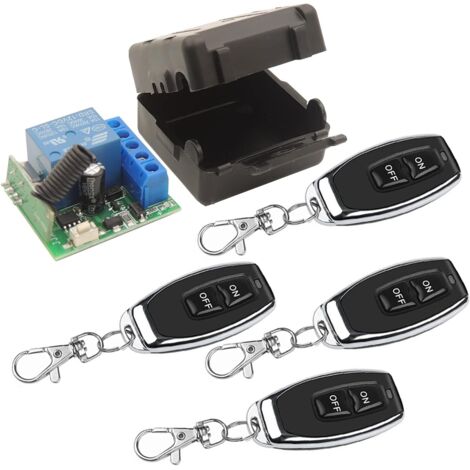

The Universal Wireless Remote Control Switch operates at a frequency of 433 MHz and is designed for DC 12V applications. It features a reliable RF relay receiver module that allows for remote control of connected devices from a distance of up to 50 meters in open areas. The system utilizes the EV1527 learning code technology, ensuring secure operation by preventing unauthorized transmitters from controlling the receiver.
Technical specifications
- Operating voltage: DC 12V
- Input voltage/output: 1 ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Support encoding: learning code EV1527
- Sensitivity reception: > 97 dBm
- RF operation mode: ASK superhetodyne wireless reception
- Operating temperature: -30 ~ +80 °C
- Reception range: more than 50 meters in open space
- Standing current: < 5 mA
Installation
To install the remote control switch, follow these steps:
- Press the learning button on the receiver once and wait for 3 seconds.
- Press a button on the remote control to complete the configuration.
Usage
The remote control switch offers four operating modes:
- Momentary mode: Press and hold the button to turn on the relay; release to turn it off.
- Toggle mode: Press the button to turn on the relay; press again to turn it off.
- Latched mode: Press the "ON" button to turn on the relay; press the "OFF" button to turn it off.
- Delay mode: Press and hold the button to turn on the relay; it will turn off after a set delay (5, 10, 15, or 20 seconds).
