Vents Centrifugal Fan 100 CF3 up to 90 m³/h

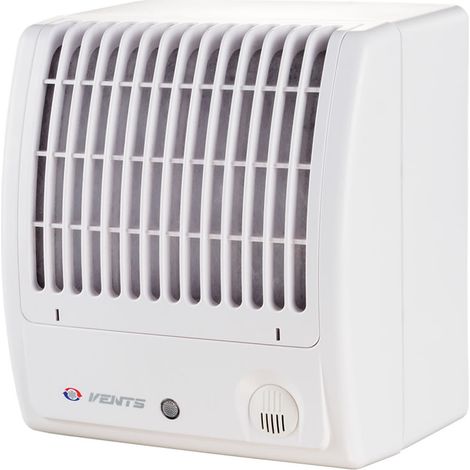

Name: Vents Centrifugal Fan 100 CF3 up to 90 m³/h
Brand: VENTS
SKU: 4824032056363
Price: 109.17 GBP
Availability: InStock

(£109.17/pc)

Sold by creoven

Product information

Description

General description

The Vents Centrifugal Fan 100 CF3 is designed for efficient ventilation in humid areas such as bathrooms and kitchens. With a maximum airflow of 90 m³/h, this fan operates quietly and is ideal for systems with high air resistance. Its durable construction ensures a long service life, making it a reliable choice for both continuous and intermittent ventilation needs.

Technical specifications

Voltage: 220 - 240 Volt / 50/60 Hertz

Power consumption: max. 27 Watt

Current consumption: max. 0.16 Ampere

Sound level (at 3m distance): max. 34 dB(A)

Airflow: max. 90 m³/h

Revolutions per minute: max. 1593

Weight: 1.3 kg

IP protection code: IP24 (splashing water)

Dimensions: ØD 100 mm, B 180 mm, H 195 mm, L 132 mm, L1 59 mm, L2 73 mm, L3 26 mm

Compatibility and accessories

Requires transformer TRF 220/12-25 for connection to the power mains (sold separately)

Control via light switch (not included) or controller P3-1-300 (sold separately)

Compatible with pipes of diameter 100 mm

Installation

Can be installed on walls and ceilings

Suitable for direct installation into ventilation shafts or for connection to pipes

Installation position: flush-mounted (in-wall) or surface-mounted (on-wall), vertical and horizontal

Easy to install

Usage

This fan is suitable for continuous or intermittent ventilation of sanitary installations, showers, kitchens, and other domestic areas. It features an integrated automated valve to prevent backflow of air and a dust filter to protect internal components.

Other information

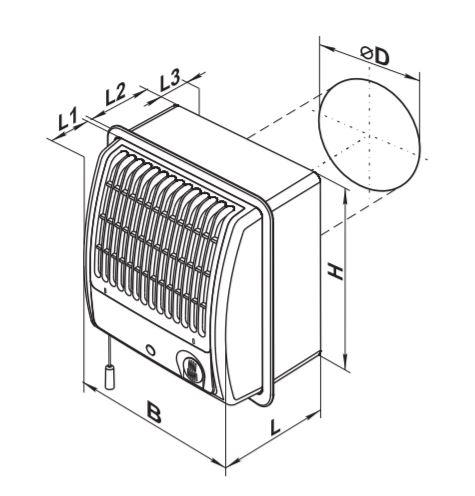

Vents Radialventilator CF3 100 Abmessungen

Features

Brand
VENTS
Colour
White
IP rating
IP24
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
90 m³/h
With timer
No
Integrated non-return valve
Yes
Presence detector
No
Integrated moisture detection
No
Duct diameter
100 mm
Silent model
Yes
Weight
1300 g
For bathroom
Yes
Power
27 W
Noise level
34 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
220 V
Type of lawn aerator
Classic
Power indicator light
No
ManoMano Reference
ME30906509
MMID
385534606895
Product code
4824032056363
EAN
4824032056363
