General description

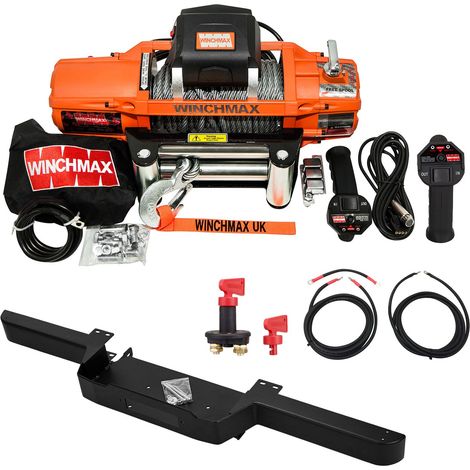

The 13,500lb (6,123kg) SL Series Original Orange 12V Electric Winch is designed for heavy-duty applications, making it ideal for recovery trucks and trailers up to 3.5T. This powerful winch features a robust steel rope and a flat bed mounting plate, ensuring reliable performance in challenging conditions.
Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp/5.1kw series wound
- Control: Big grip remote switch, 4.5m lead
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Black, painted
- Cable: 24m x 9.5mm (3/8”) diameter steel wire rope
- Hook: Clevis hook with safety catch, zinc plated
- Fairlead: 4-Way roller fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (2”) 25mmsq - 5.6mm diameter
- Winch Finish: Original Orange powder coated
- Weight (GW): 40kg (88lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Compatibility and accessories
- Heavy-duty mounting plate folded and CNC laser cut from 5mm steel
- Durable powder-coated finish
- Pre-drilled for quick and easy installation of winch and fairlead
- Ideal for flatbed recovery truck and trailer applications
Usage
This winch is perfect for recovery operations, allowing users to pull heavy loads with ease. The wireless remote control provides convenience and safety during operation, while the durable construction ensures longevity even in tough environments.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
