General description

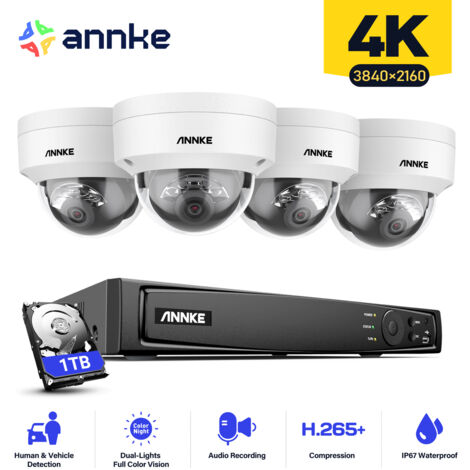

The ANNKE 8CH CCTV Kit is a comprehensive security surveillance system featuring a 4K PoE Network Video Recorder (NVR) and four 8MP smart dual light cameras. This system is designed for high-resolution monitoring and recording, ensuring that you capture every detail with clarity. The advanced features include motion detection, remote access, and customizable alerts, making it an ideal choice for both residential and commercial security needs.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Incoming/Outgoing Bandwidth: 80/80 Mbps
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (W x H x D): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (Without Hard Disk): 2.2 lbs (1 kg)
- Camera Image Sensor: 1/2.4" Progressive Scan CMOS
- Camera Max Resolution: 3840 x 2160 (8MP)
- Camera Lens: 4 mm
- Camera Weight: 1.2 lbs (550 g)
- Camera Dimensions: Ø121.4 mm x 97.6 mm (Ø4.78" x 3.84")
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
- Expandable with additional cameras (1MP to 8MP)
Installation
- Easy installation with built-in PoE inputs for camera connectivity
- Connects via RJ-45 10/100 Mbps self-adaptive Ethernet interface
Usage
- Live view, recording, and playback capabilities
- Remote monitoring via iPhone, iPad, and Android devices
- Customizable motion detection areas and privacy masks
- Instant alerts via app pushes and email notifications for motion events
