General description

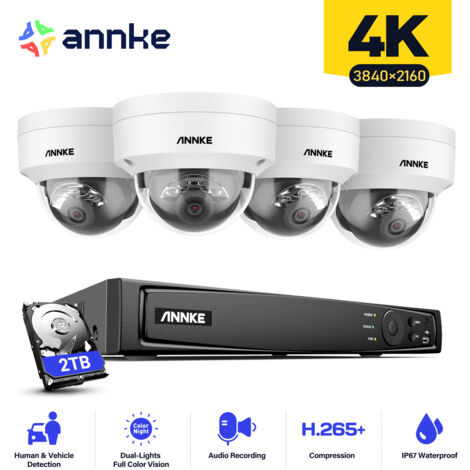

This ANNKE 8CH CCTV Kit includes a 4K PoE Network Video Recorder and four 8MP cameras, designed for comprehensive security surveillance. The system supports live viewing, recording, and playback at resolutions up to 12 MP, ensuring high-quality video capture. With advanced features such as smart dual light technology, motion detection, and remote access capabilities, this kit is ideal for both residential and commercial security needs.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 X 3072)@30fps
- Max Playback Resolution: Up to 12MP (4096 X 3072)@30fps
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Incoming/Outgoing Bandwidth: 80/80 Mbps
- HDD Capacity: Up to 8 TB
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F / -10 °C ~ +55 °C
- Dimensions (W X H X D): 12.4” X 9.4” X 1.9” / 315 X 240 X 48 mm
- Weight (Without Hard Disk): 2.2 lbs / 1 kg
Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840*2160 (8MP)
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Supplement Light Type: Smart Dual-Light, IR, White Light
- Supplement Light Range: Up to 30 m
- Wide Dynamic Range: 120 dB WDR
- Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C
- Dimensions (L X W X H): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Weight: 1.2 lb. / 550 g
Usage
The ANNKE CCTV Kit is designed for easy installation and use. Users can monitor their property remotely via mobile devices, receive instant alerts for motion events, and customize motion detection areas for enhanced security. The system is suitable for both indoor and outdoor applications.Other information
