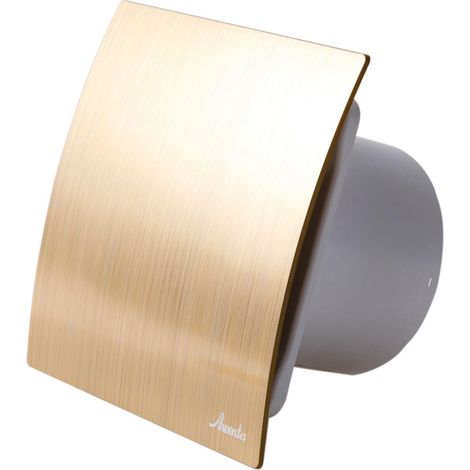

Extractor fan System Turbo Escudo Gold 100 H

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Front panel colour: gold
Front panel material: ABS plastic
Nominal size: 100 mm
Speed levels: 1
Wattage: 13 W
Revolutions per minute: 2400
Max. airflow rate: 110 m³/h
Sound pressure level Lp-3m: 36 dB(A)
Total pressure Pmax.: 40 Pa
IP rating: IPX4
Max. ambient temperature: +40°C
Diameter pipe connection: 100 mm
Front cover: 160 x 160 x 30 mm
Total depth: 118 mm
Weight: 0.7 kg
Adjustable shut-off timer (3-30 min), humidity sensor (40-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value
Mounting options: wall, ceiling
Application: direct connection to the ventilation shaft

Features

Brand
AWENTA
Colour
Yellow
Shape
Square
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
