Extractor fan System Turbo Trax Red 100 M

(£102.59/pc)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

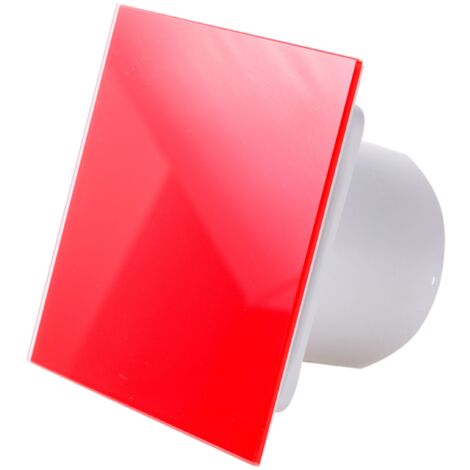

The Extractor Fan System Turbo Trax Red 100 is designed for efficient ventilation with a stylish glossy red front panel made of glass. It features a compact design suitable for direct connection to ventilation shafts.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Wattage: 13 W

Speed levels: 1

Revolutions per minute: 2400

Max. airflow rate: 110 m³/h

Sound pressure level Lp-3m: 36 dB(A)

Total pressure Pmax.: 40 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 159 x 159 x 38 mm

Total depth: 126 mm

Weight: 0.7 kg

Other information

Adjustable shut-off timer (3-30 min)

Motion sensor: fan automatically turns on when sensing movement and turns off after the pre-set time

Mounting options: wall

Features

Brand
AWENTA
Colour
Red
Shape
Square
IP rating
IPX4
Material
Glass
Air flow
110 m³/h
With timer
Yes
Integrated non-return valve
Yes
Presence detector
Yes
Height
15.9 cm
Weight
700 g
Power
13 W
Noise level
36 dB
Pcs per pack
1
Type of lawn aerator
Classic
Mounting method
To screw
Connection diameter
100 mm
ManoMano Reference
ME56233419
MMID
162902026656
Product code
KWT100MPTGRP
EAN
0745203008070
