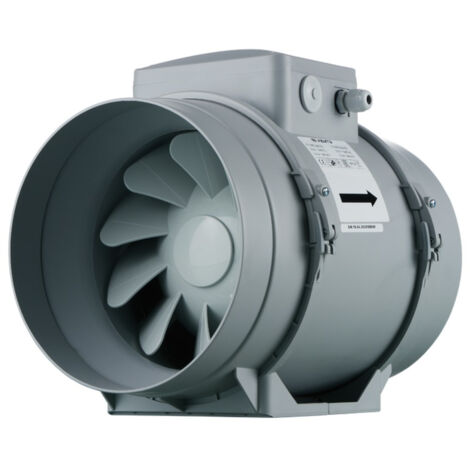

Inline fan Vents TT Pro 200 V up to 1040 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: grey
• Housing material: robust, flame-retardant polypropylene
• Nominal size: 200 mm
• Wattage min. / max.: 76 / 108 W
• Current consumption min. / max.: 0.34 / 0.48 A
• Revolutions per minute min. / max.: 1915 / 2380
• Airflow rate min. / max.: 830 / 1040 m³/h
• Sound pressure Lp-3m min. / max.: 45 / 52 dB(A)
• Height: 261 mm
• Width: 239 mm
• Length: 295.5 mm
• Diameter duct connection : 199 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 4 kg
• Integrated speed control: 2 speeds / off
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
