General description

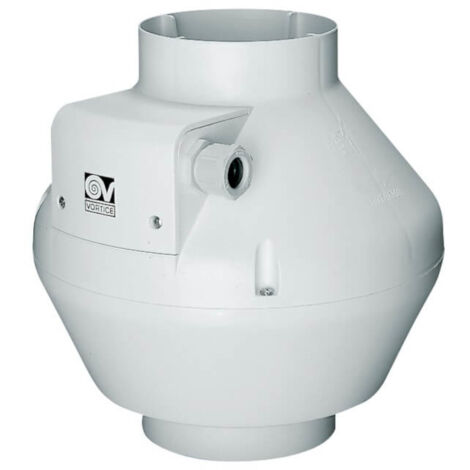

The Inline Fan CA 150 V0 D is a powerful centrifugal inline fan designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. With a maximum airflow rate of 460 m³/h, it ensures effective ventilation while maintaining a subtle presence.Technical specifications
- Voltage: 220-240 Volt ~ 50/60 Hertz
- Max. wattage: 52 W
- Max. current consumption: 0.22 A
- Max. revolutions per minute: 2400
- Max. airflow rate: 460 m³/h
- Total pressure Pmax: 312 Pa
- Sound pressure level Lp-3m: 56 dB(A)
- Max. temperature: 50°C
- Protection code: IPX4
- Insulation class: II
- Weight: 2.6 kg
- Housing material: self-extinguishing plastic, non-yellowing
- Housing colour: white
- Nominal width: 150/160 mm
- Thermal overload protection
- Integrated protection grille on the air intake side
Compatibility and accessories
Optional speed controllers and sensors are available separately. Additional accessories can be found in our shop.Installation

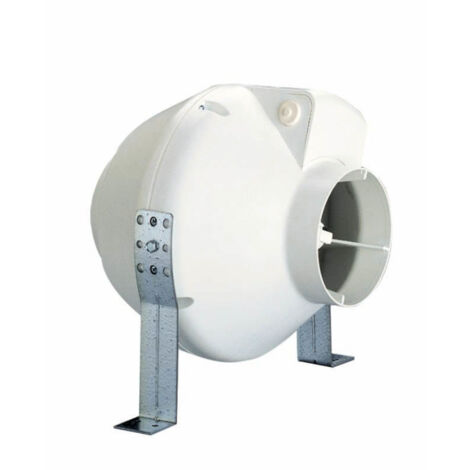

The fan can be mounted in walls, ceilings, or suspended ceilings. Steel sheet mounting brackets are included in the delivery.Usage
This inline fan is ideal for subtle air extraction in various environments, ensuring effective ventilation without being intrusive.Other information
