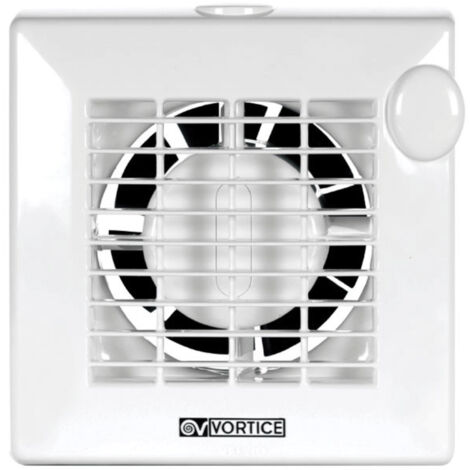

Extractor fan Punto M 120 LL

Product information

Description

General description

The Punto M 120 LL extractor fan is designed for efficient ventilation in various settings. Its compact design and powerful performance make it suitable for both wall and ceiling mounting.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: UV-resistant ABS

Nominal size: 120 mm

Bearings: ball bearing

Speed levels: 1

Wattage: 20 W

Current consumption: 0.12 A

Revolutions per minute: 2100

Max. airflow rate: 175 m³/h

Max. sound pressure level Lp-3m: 39.5 dB(A)

Max. total pressure Pmax.: 44 Pa

IP rating: IPX4

Insulation class: II

Front cover dimensions: 181 x 179 x 47 mm

Total depth: 110 mm

Diameter duct connector: 119 mm

Weight: 0.8 kg

Installation

Mounting options: wall, ceiling

Other information

Thermal overload protection

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
175 m³/h
Aerator control type
Switch
Height
18.1 cm
Weight
800 g
Depth
11 cm
Power
20 W
Noise level
39.5 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
230 V
Type of lawn aerator
Classic
ManoMano Reference
ME2208422
MMID
816474983170
Product code
11302
EAN
8010300113029
