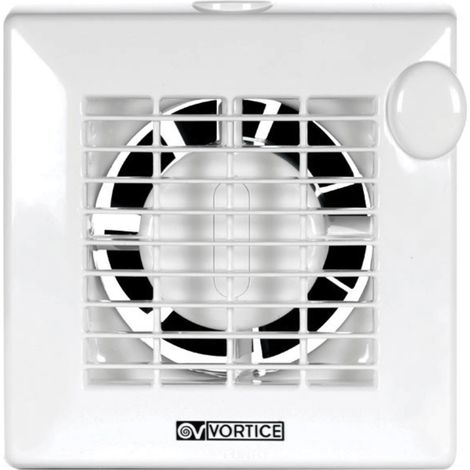

Extractor fan Punto M 120 T LL

Product information

Description

General description

The Punto M 120 T LL extractor fan is designed for efficient ventilation in various settings. With a sleek white housing made from UV-resistant ABS, this fan combines functionality with durability. It features a ball bearing system for smooth operation and is equipped with an adjustable shut-off timer, allowing it to turn off automatically after a pre-set duration of 3 to 20 minutes.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 120 mm

Wattage: 20 W

Current consumption: 0.12 A

Revolutions per minute: 2100

Max. airflow rate: 175 m³/h

Max. sound pressure level Lp-3m: 39.5 dB(A)

Max. total pressure Pmax.: 44 Pa

IP rating: IPX4

Insulation class: II

Front cover dimensions: 181 x 179 x 47 mm

Total depth: 110 mm

Diameter duct connector: 119 mm

Weight: 0.8 kg

Installation

The Punto M 120 T LL can be mounted on both walls and ceilings, providing flexibility in installation options.

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
