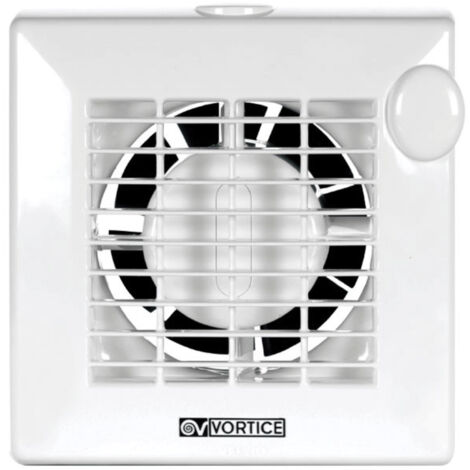

Extractor fan Punto M 100 P

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

The Punto M 100 P extractor fan is designed for efficient ventilation in various settings. Its compact design and powerful performance make it suitable for both wall and ceiling mounting.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: UV-resistant ABS

Nominal size: 100 mm

Bearings: plain bearing

Speed levels: 1

Wattage: 18 W

Current consumption: 0.1 A

Revolutions per minute: 2300

Max. airflow rate: 90 m³/h

Max. sound pressure level Lp-3m: 37.5 dB(A)

Max. total pressure Pmax.: 29 Pa

IP rating: IPX4

Insulation class: II

Front cover dimensions: 159 x 160 x 47 mm

Total depth: 100 mm

Diameter duct connector: 99 mm

Weight: 0.6 kg

Installation

Mounting options: wall, ceiling

Other information

Pull switch operation: on / off

Thermal overload protection

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
90 m³/h
Aerator control type
Pull cord
Integrated non-return valve
No
Integrated moisture detection
No
Silent model
No
Weight
600 g
Depth
10 cm
Power
18 W
Noise level
37.5 dB
Pcs per pack
1
Ball bearings
No
Type of lawn aerator
Classic
Type of installation method
For mounting
Power indicator light
No
Mounting method
To screw
ManoMano Reference
ME55959560
MMID
238339684228
Product code
11641
EAN
8010300116419
