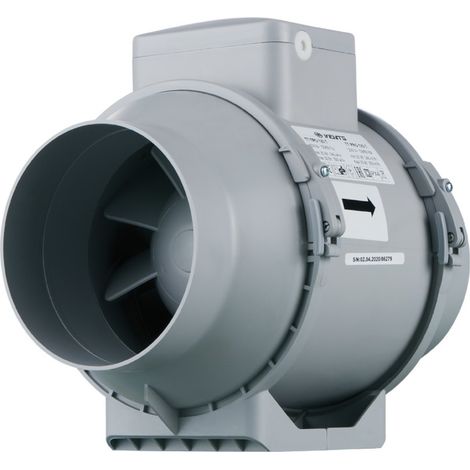

Inline fan Vents TT Pro 125 V up to 350 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: grey
• Housing material: robust, flame-retardant polypropylene
• Nominal size: 125 mm
• Wattage min. / max.: 25 / 30 W
• Current consumption min. / max.: 0.11 / 0.13 A
• Revolutions per minute min. / max.: 1630 / 2300
• Airflow rate min. / max.: 240 / 350 m³/h
• Sound pressure Lp-3m min. / max.: 29 / 34 dB(A)
• Height: 226 mm
• Width: 195.6 mm
• Length: 258.5 mm
• Diameter duct connection : 123 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 2.15 kg
• Integrated speed control: 2 speeds / off
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
