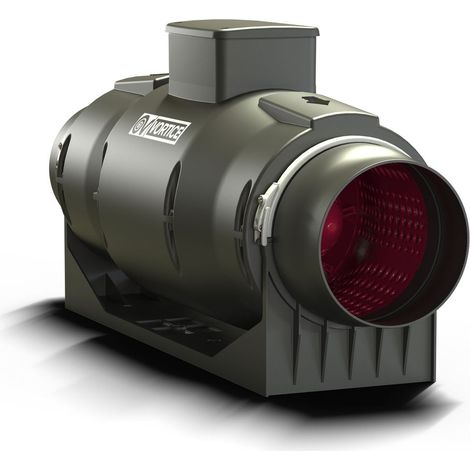

Sound Insulated Inline Fan Lineo 160 Quiet

(£380.45/pc)

Product information

Description

General description

The Sound Insulated Inline Fan Lineo 160 Quiet is designed for efficient air circulation while minimizing noise levels. Its robust construction and advanced features make it suitable for various applications in home improvement and DIY projects.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: black

Housing material: polypropylene

Nominal size: 160 mm

Bearings: ball bearing

Speed levels: 3

Wattage: 24 / 37 / 50 W

Current consumption: 0.14 / 0.17 / 0.22 A

Revolutions per minute: 1040 / 1430 / 2030

Airflow rate: 255 / 350 / 510 m³/h

Breakout sound pressure level Lp-3m: 14.1 / 22.5 / 30.2 dB(A)

Breakout sound power level Lw: 34.6 / 43 / 50.7 dB(A)

Total pressure Pmax: 103 / 152 / 210.9 Pa

Max. temperature of transported air: +55°C

Protection class: IP45

Insulation class: II

Diameter duct connector: 156.5 mm

Length: 570 mm

Height: 320.5 mm

Width: 232 mm

Width of mounting bracket: 170 mm

Weight: 5.2 kg

Thermal overload protection

Includes mounting bracket

Mounting position: any position

Fan unit can be removed quickly for cleaning and maintenance

Classification of fire E-d2 according to European Standard EN 13501-1

Features

Brand
VORTICE
Colour
Grey
Shape
Cylindrical
IP rating
IP45
Material
Plastic
Silent model
Yes
Weight
5200 g
Power
50 W
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Intermediate
ManoMano Reference
ME50939547
MMID
288711705407
Product code
17163
EAN
8010300171630
