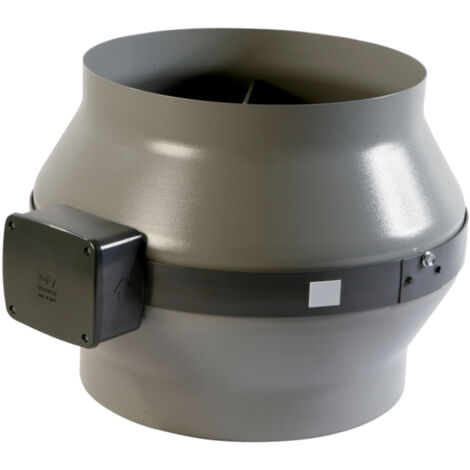

Centrifugal Inline Fan CA MD E 200

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Centrifugal inline fan with mounting brackets
Housing colour: hammered grey
Housing material: phosphated steel, polyester powder coating
Nominal width: 200 mm
Speeds: 3
Motor wattage: 39 / 57 / 89 W
Current consumption: 0.35 / 0.38 / 0.43 A
Revolutions per minute: 1440 / 2140 / 2630
Airflow rate: 412 / 620 / 775 m3/h
Total pressure Pmax: 353 / 441 / 441 Pa
Max. sound pressure level Lp-3m: 48.1 dB(A)
Max. temperature for continuous operation: 50°C
Protection code: IP44
Insulation class: II
Diameter duct connection: 197 mm
Diameter without terminal box: 347 mm
Diameter with terminal box: 424 mm
Total depth: 275 mm
Weight: 4.8 kg
Thermal overload protection
Ball-bearing external rotor motor

Features

Brand
VORTICE
Colour
Grey
Shape
Cylindrical
Warranty
2 year(s)
IP rating
IP44
