General description

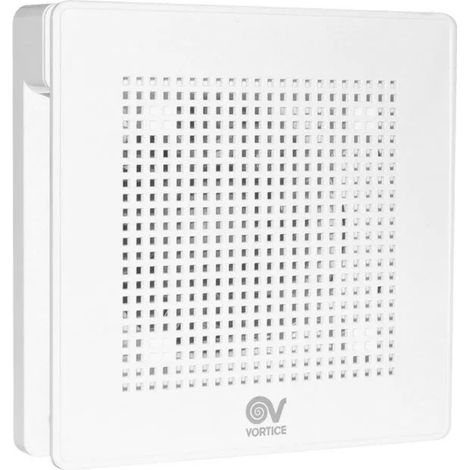

The PUNTO EVO ME 100 is a compact bathroom fan designed for efficient ventilation in small rooms. It features a sleek white design and is available in various models, each offering unique functionalities to suit different needs.Technical specifications
- Voltage: 230 - 240 Volt / 50 Hertz
- Material: Shock-proof, UV-resistant ABS synthetic material for motor support, grille, and non-return flap
- Blade wheel: Diagonal, made of polypropylene
- Power consumption: 5 - 9 Watt
- Current: 0.039 - 0.052 Ampere
- Total pressure: 27.46 - 46.09 Pa
- Sound pressure (Lp-3m): 20.8 - 26.9 dB(A)
- Rotation speed: 1700 - 2240 rpm
- Airflow: 65 - 95 m³/h
- Protection code: IP45 (protected against water jets)
- Weight: 0.56 kg
- Life span: Approximately 30,000 hours
Compatibility and accessories
- Available models: ME 100 LL, ME 100 LL T, ME 100 LL T PIR, ME 100 LL TP, ME 100 TP HCS
Installation
- Simple and quick installation
- Can be mounted in any position: horizontal, vertical, or diagonal
- Options for wall, ceiling, or porched mounting
Usage
- 2-speed operation for customizable airflow
- Models with additional features: delayed switching off, motion sensor activation, humidity sensor activation
