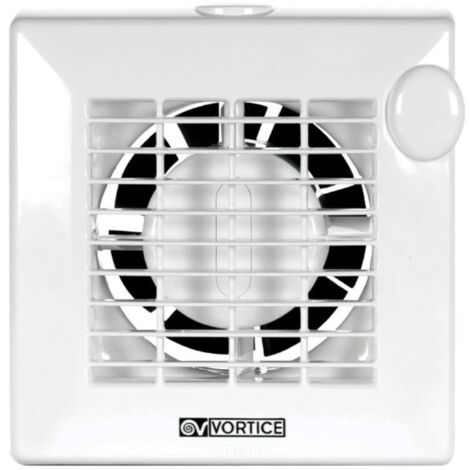

Extractor fan Punto M 100 LL

Product information

Description

General description

The Punto M 100 LL extractor fan is designed for efficient ventilation in various settings. With a sleek white housing made from UV-resistant ABS, it combines durability with functionality.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Wattage: 18 W

Current consumption: 0.1 A

Revolutions per minute: 2300

Max. airflow rate: 90 m³/h

Max. sound pressure level Lp-3m: 37.5 dB(A)

Max. total pressure Pmax.: 29 Pa

IP rating: IPX4

Insulation class: II

Front cover dimensions: 159 x 160 x 47 mm

Total depth: 100 mm

Diameter duct connector: 99 mm

Weight: 0.6 kg

Bearings: ball bearing

Speed levels: 1

Thermal overload protection: Yes

Installation

Mounting options: wall, ceiling

Features

Brand
VORTICE
Height
16 cm
Weight
600 g
Power
18 W
Voltage
230 V

Customer reviews

4,5

/ 2 Reviews

Reviews verified by ManoMano

PPhilippe

Published on 01/06/2026, France

Good product.

MManoMano Customer

Published on 13/02/2019, France

It has replaced a self-propelled aerator by this extractor with its window fixing kit, thus achieving forced ventilation to significantly reduce the ambient humidity.

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.

Read our guide
