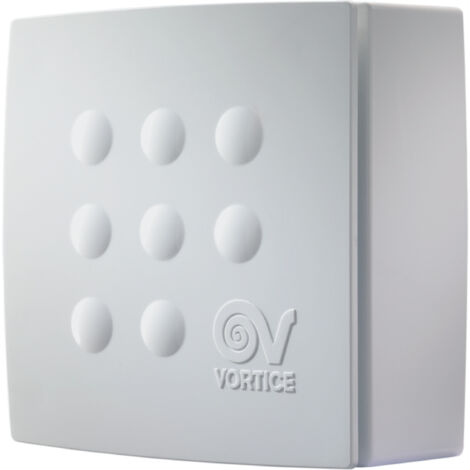

Centrifugal Duct Fan Quadro Micro 100 THCS

#1 in sales

Product out of stock

Product information

Description

General description

The Centrifugal Duct Fan Quadro Micro 100 THCS is designed for efficient ventilation in various environments. It features a robust ABS plastic housing that is non-yellowing and UV-resistant, ensuring durability and longevity. This fan operates at two speed levels, making it versatile for different airflow needs.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal diameter: 100 mm

Wattage: 20 / 28 W

Current consumption: 0.1 / 0.13 A

Revolutions per minute: 1180 / 1600

Airflow rate: 65 / 90 m³/h

Total pressure Pmax: 157 / 216 Pa

Sound pressure Lp-3m: 32.9 / 39.2 dB(A)

Max. temperature for continuous operation: 50°C

IP code: IPX4

Insulation class: II

Diameter duct connector: 97 mm

Dimensions front: 239 x 239 x 97 mm

Total depth with duct connector: 117 mm

Weight: 1.8 kg

Other information

Adjustable shut-off timer (3-20 min)

Humidity sensor (60-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value

Washable synthetic fibre fleece filter

Thermal overload protection

Self-lubricating bush bearings

Non-return valve prevents cold air from infiltrating once the fan is turned off

Mounting options: surface-mounted, any position

Features

Brand
VORTICE
Colour
White
IP rating
IPX4
Material
Plastic
Air flow
90 m³/h
Aerator control type
Timer
With timer
Yes
Integrated non-return valve
Yes
Presence detector
Yes
Integrated moisture detection
Yes
Silent model
Yes
Weight
2000 g
For bathroom
Yes
Power
20 W
Noise level
39.2 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
230 V
Type of lawn aerator
Classic
Type of installation method
For mounting
Power indicator light
Yes
ManoMano Reference
ME10058516
MMID
156668387925
Product code
11945
EAN
8010300119458

Customer reviews

4,0

/ 41 Reviews

Reviews verified by ManoMano

NNicolas

Published on 13/02/2023, France

Great product. Works perfectly. Adapts perfectly to the 80mn air outlet (format very difficult to find today). The air is quickly extracted from the bathroom and eliminates the bulk of the humidity. I recommend.

5 people found this helpful

MManoMano Customer

Published on 14/12/2022, France

Careful manufacture, modern and flattering appearance, powerful suction, effective non-return valve, easy assembly, a little noisier than expected.

1 person found this helpful

FFrancesco Giuseppe

Published on 26/01/2026, Italy

I thought it was more powerful, I had the same model for several years, I replaced it due to a fault, theoretically it should have identical features, instead I suffer from poor suction efficiency

1 person found this helpful

BBouhou

Published on 26/12/2025, France

Doesn't work

FFabio

Published on 03/04/2025, Italy

Excellent brand, one of the leaders in the sector. Aesthetically beautiful even if not exactly small in size!!! But this is due to the type of vacuum cleaner!

XXavier

Published on 18/11/2024, France

This extractor is of better quality than I expected, pleasant surprise. It is quite bulky but practical for an installation close to a wall corner, with its eccentric air outlet. It is really easy to install, you can select one extraction speed or another when connecting it. I installed mine at the fastest speed, it is a little noisier of course but it remains relatively discreet compared to other extractors which are much more deafening.

3 people found this helpful
