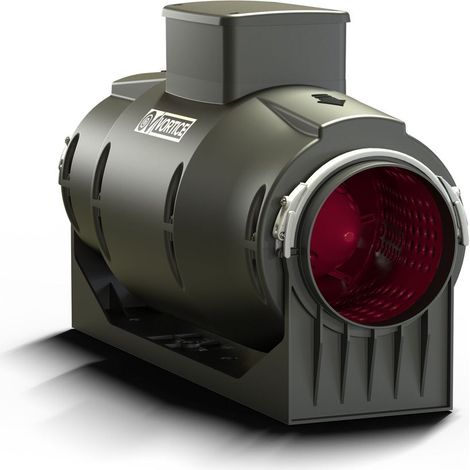

Sound Insulated Inline Fan Lineo 100 Quiet

Often purchased together

Product information

Description

General description

The Sound Insulated Inline Fan Lineo 100 Quiet is designed for efficient air circulation while minimizing noise levels. Its robust construction and advanced features make it suitable for various ventilation applications.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: black

Housing material: polypropylene

Nominal size: 100 mm

Bearings: ball bearing

Speed levels: 3

Wattage: 11 / 24 / 27 W

Current consumption: 0.09 / 0.11 / 0.13 A

Revolutions per minute: 1455 / 1880 / 2260

Airflow rate: 150 / 200 / 260 m³/h

Breakout sound pressure level Lp-3m: 16 / 23.5 / 28.4 dB(A)

Breakout sound power level Lw: 36.5 / 44 / 48.9 dB(A)

Total pressure Pmax: 88.3 / 112.8 / 147.1 Pa

Max. temperature of transported air: +45°C

Protection class: IP45

Insulation class: II

Diameter duct connector: 97 mm

Length: 639 mm

Height: 294.5 mm

Width: 210 mm

Width of mounting bracket: 135 mm

Weight: 3.8 kg

Thermal overload protection

Includes mounting bracket

Mounting position: any position

Fan unit can be removed quickly for cleaning and maintenance

Classification of fire E-d2 according to European Standard EN 13501-1

Features

Brand
VORTICE
Colour
Black
Shape
Cylindrical
IP rating
IP45
Material
Polypropylene
