General description

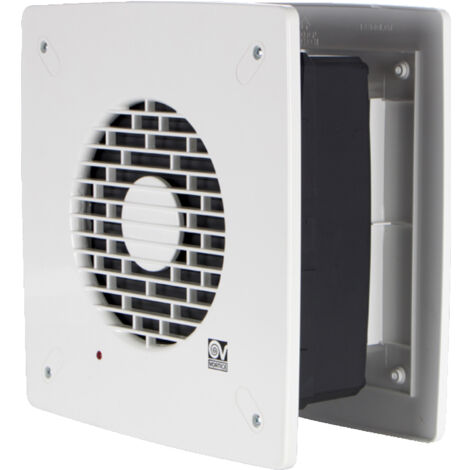

The Vario 300/12 ARI-S extractor fan is designed for efficient ventilation in various environments. It features a robust construction with impact-resistant and UV-resistant ABS plastic, ensuring durability and longevity. The fan operates at a nominal size of 300 mm and is ideal for both supply and exhaust air applications.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Colour: White
- Material: Impact-resistant, UV-resistant ABS plastic
- Nominal size: 300 mm
- Speed levels: 1
- Wattage: 75 W
- Current consumption: 0.41 A
- Revolutions per minute (supply air): 1310
- Revolutions per minute (exhaust air): 1230
- Max. airflow rate (supply air): 1000 m³/h
- Max. airflow rate (exhaust air): 1750 m³/h
- Sound pressure level (Lp-3m): 53.5 dB(A)
- IP rating: IPX4
- Protection class: II
- Max. ambient temperature: +50°C
- Weight: 7.2 kg
- Ball-bearing: Yes
- Automated internal shutter flap: Yes (prevents cold air from entering when the fan is off, can be opened manually)
- Optional CR controllers: Allow reversing and speed control
Compatibility and accessories
- Optional CR controllers for reversing and speed control
Installation
- Model: 300/12 ARI

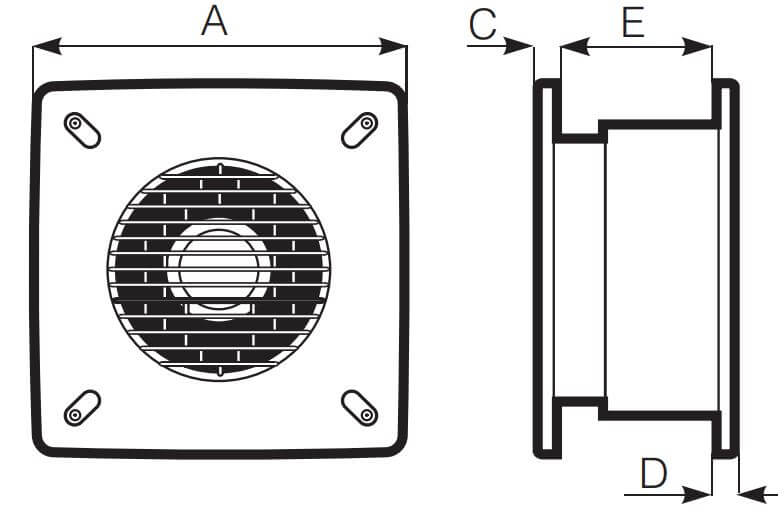

- Dimensions for installation: A: 495 mm, C: 10.5 mm, D: 11.5 mm, E: 210 mm, Ø Cutout: 435-440 mm
Usage
This extractor fan is suitable for various applications, including residential and commercial spaces, where effective ventilation is required. It can be used for both supply and exhaust air, ensuring optimal air circulation.Other information
